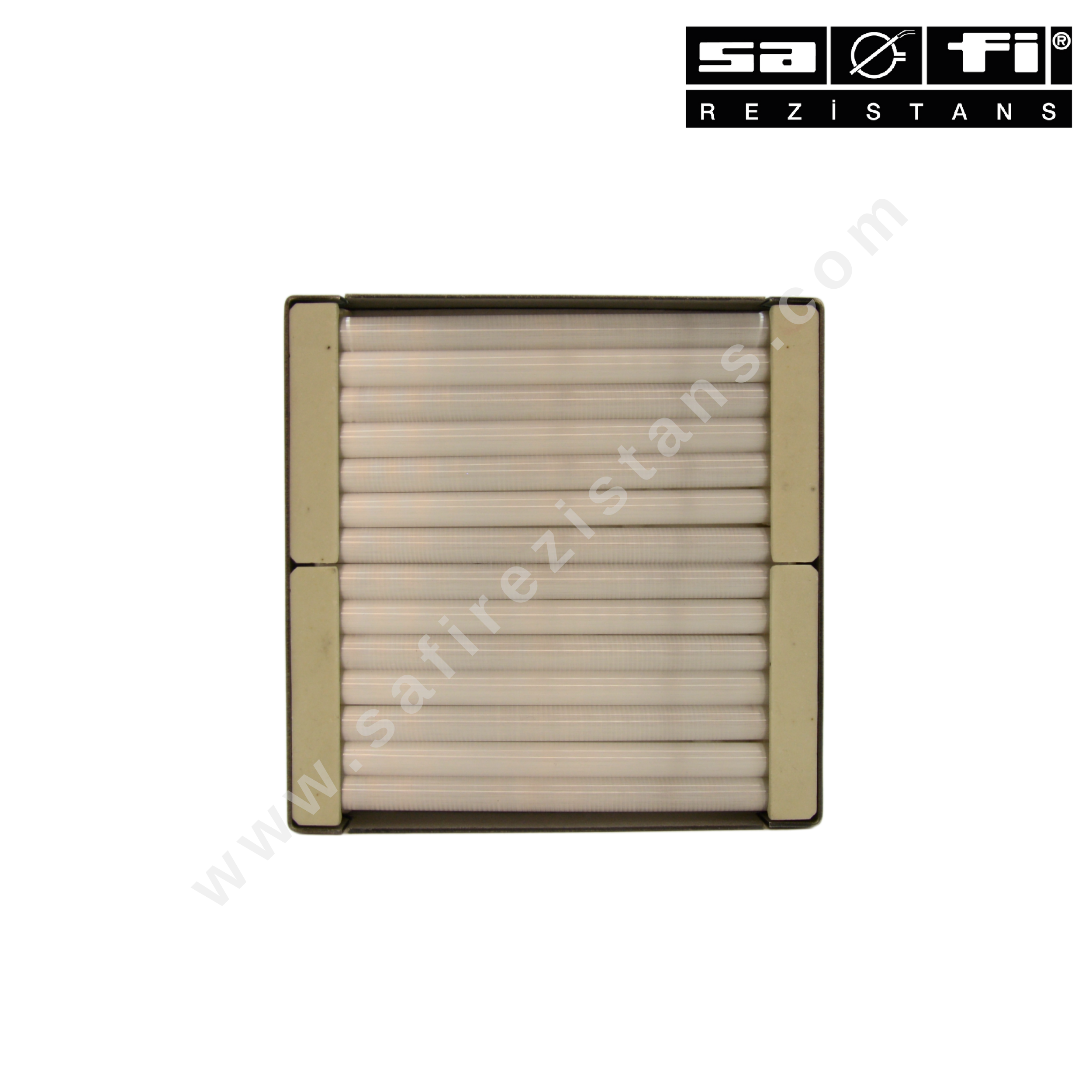

QH Type 0 Quartz Cassette Heaters are high-performance infrared heating elements equipped with a K-Type Thermocouple, offering fast response time and efficient heat transfer. With power options ranging from 250W to 1000W, they ensure instant and uniform heat distribution, providing excellent heating in industrial processes. Thanks to infrared quartz technology, they are particularly effective in manufacturing, plastic processing, drying, and packaging systems.

🔥 Key Features

✅ K-Type Thermocouple Included: Enables precise temperature monitoring and control
✅ Fast Heating Response: Infrared quartz technology ensures instant heat generation and minimizes warm-up time
✅ Wide Power Range: Available in various power options from 250W to 1000W
✅ Compact & Durable Design: Lightweight and robust construction with an aluminum-clad steel body
✅ Optimized Heat Radiation: Provides effective infrared heat transfer in the 1.5 – 8 micron wavelength range
✅ Easy Installation & Integration: Standard 124x124x26 mm dimensions ensure seamless compatibility with various systems

⚙️ Technical Specifications

• Product Name: QH Type 0 Quartz Cassette Heater (with K-Type Thermocouple)

• Power Range: 250W, 300W, 400W, 500W, 650W, 750W, 1000W

• Dimensions: 124x124x26 mm

• Operating Voltage: 230V (Standard)

• Infrared Wavelength Range: 1.5 – 8 microns

• Recommended Minimum Distance Between Elements: 5 mm

• Maximum Operating Temperature: Up to 500°C (932°F)

• Power Connection: Supplied with 120 mm ceramic-beaded power cable

• Mounting Position: Quartz glass tubes must always be mounted horizontally

• Thermocouple: Integrated K-Type Thermocouple

🛠️ Applications

• Plastic forming and injection molding machines

• Industrial drying and heating systems

• Textile and fabric processing applications

• Electronics soldering and preheating processes

• Vacuum coating and packaging machines

• Heating applications in the food industry

• Medical sterilization and infrared heating systems
