SAFİ2-WRP/F/T
SAFİ2-WRP/F/T

APPLICATİON

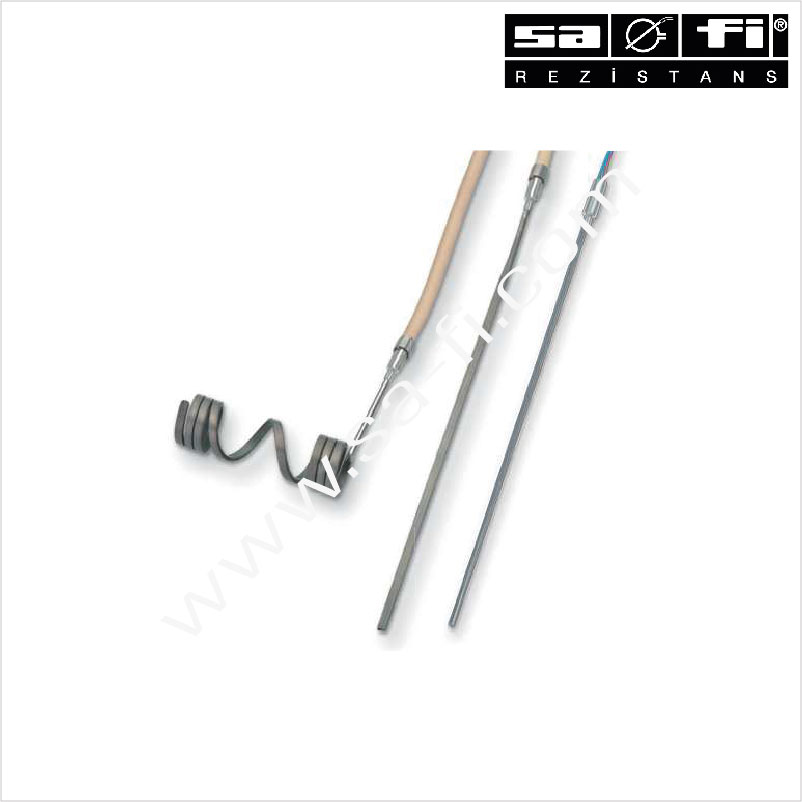

SAFİ 4,5x2,5 mm coil heaters are used in plastic hot runner systems to ensure the fluidity of the fluid raw material into the mold. Especially these products are produced for areas that require high power and efficiency in a narrow space.The heater is coiled according dimensions of nozzle.Coil heaters are not operated idle. It should be operated with temperature controller system.

Technical Specification
Insulation material: Compresses MgO
Max. Sheath temperature: 750°C with clamping band
  650°C
Standard Voltage: 230V
Wattage tolerance: ±%10
High Voltage Test: 800V
Insulation Resistance: ≥ 5 MΩ 500V da
