Hot Runner Controllers provide dependable temperature control for runner, injection molds, machine nozzles, hot sprue bushings, or any other application requiring thermocouples to monitor temperature.

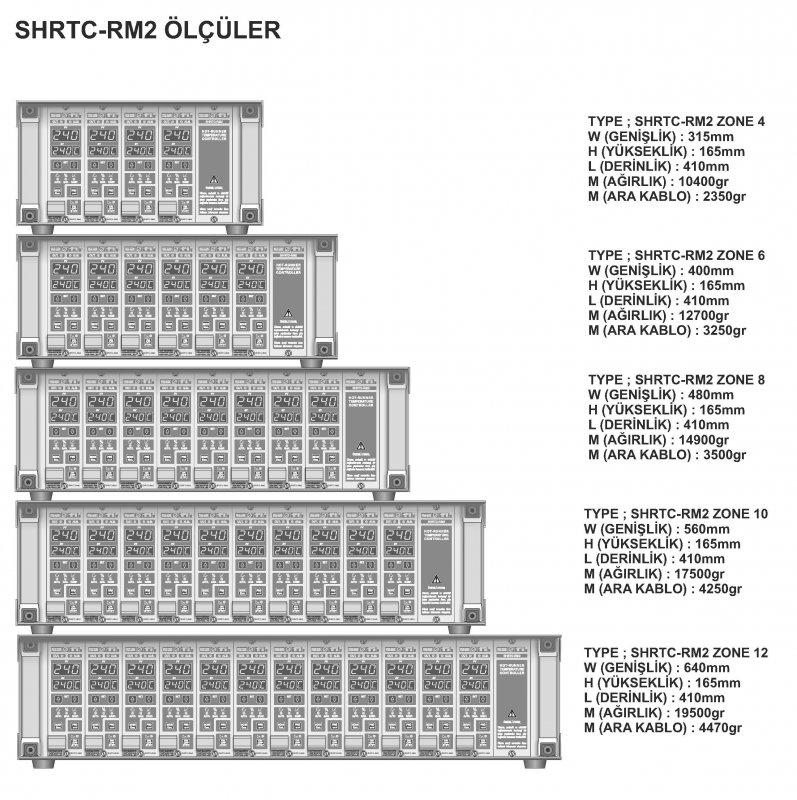

Our controllers systems are produces as 1,2,4,6,8,10 and 12 zones. Their specifications are as below:

1) Modular Rack System

2) Easy to remove and fix modular

3) P.I.D. control; P.I.D. parameters self tuning with AUTO-TUNE process

4) STAND-BY feature. In case of taking break, one-touch operation of hibernation and start again.

5) Automatically switch to proportional operation if thermocouple breaks.

6) Operate without thermocouple (proportional operation)

7) SOFT START feature

​8) Maximum operate temperature 537˚C (999˚F)

9) Switch on and off with one button, without stopping energy

10) Limitation at the maximum set value

11) Automatic fuse protector for each zone

12) Alarm output in case of thermocouple breaks or failure

​13) Easy to reach set value functions

14) Independent adjustment of high and low temperature value

15) Cancellation function at low temperature alarm at first operation

16) Operate with J type (Fe-Const) and K type (NiCr-Ni) thermocouple

17) Operate with ˚C and ˚F units
