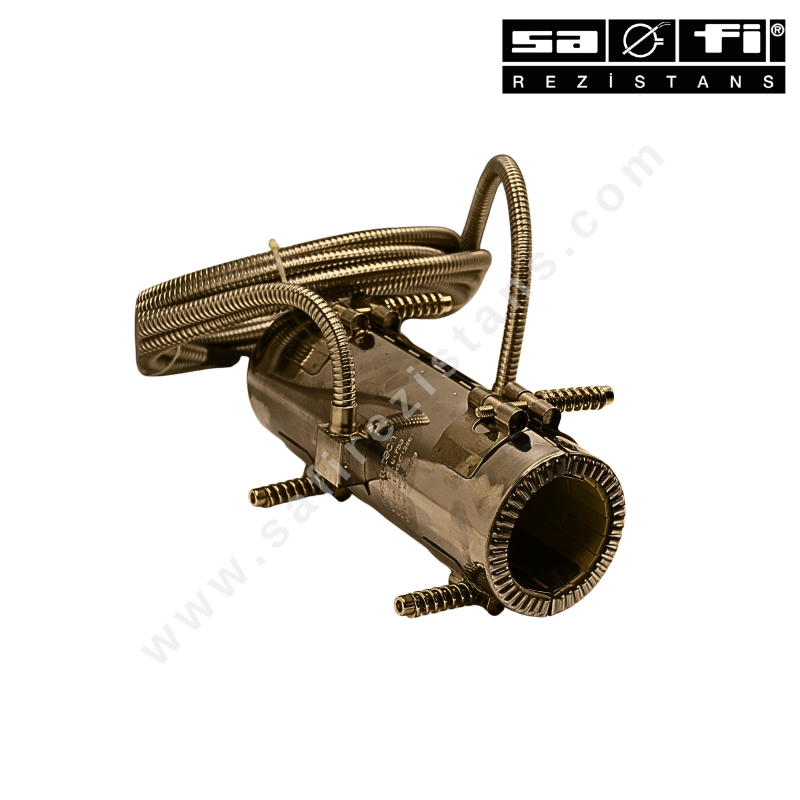

Ceramic Band Heater

They are long life band heaters designed for processing and making all kinds of plastic raw materials, extruder machines and in many fields of plastic industry.

These ceramic insulated band heaters can be tested and run at idle. They must be mounted in such a way that heat transfer is ensured. Thanks to the direct contact of ceramic surfaces that has high thermal conductivity.

It is produced according customer's demand.

Technical Specification
Diameter :  Min. Ø50mm - Max. Ø1200mm.
Length:  Min 50mm - Max. 600mm.
Voltage: 230/400 V
Wattage : Max. 6,5 W/cm²
Wall Thickness: ~13mm
Working Temperature:  550 °C
Housing Material: Stainless Steel
Insulation Material:  Max.1200 °C Steatit
Resistance Winding Wire:  80/20 NiCr 1200°C
Energy Connection :  Ni GLS Cable Resistant to 400ºC , plugs or connection boxes
