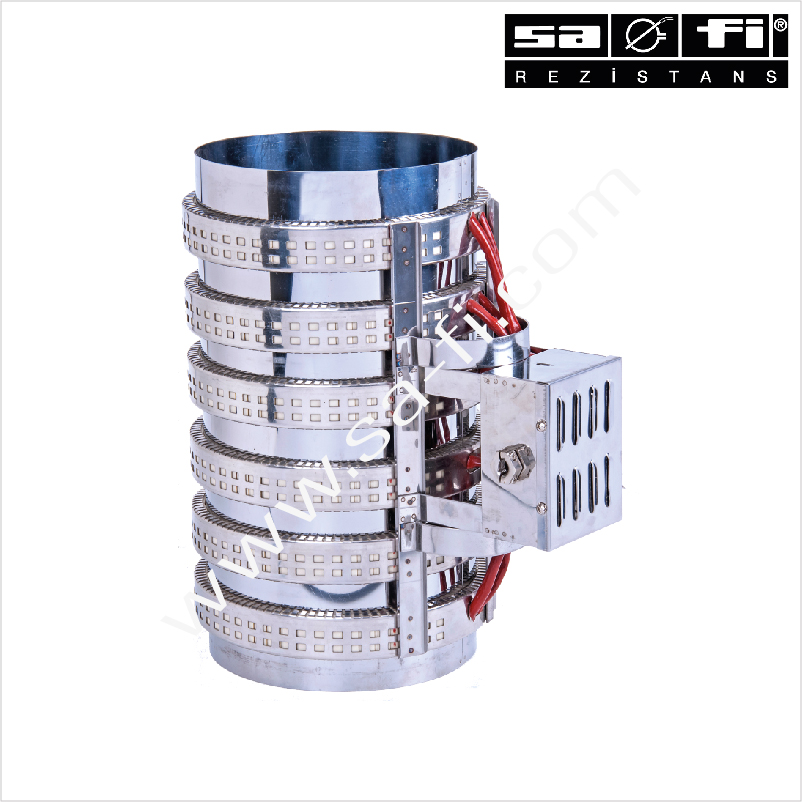

Inner Part of Ceramic Insulated Air Cooling Heaters

It is inner part of CH404 and CH404E air cooling heater.

It is procuded according customer's demand.

Technical Specification
Diameter :  Min. Ø60mm - Max. Ø600mm.
Length:  Min 100mm - Max. 800mm.
Voltage: 230/400 V
Wattage : Max. 6,5 W/cm²
Working Temperature:  400 °C
Housing Material: Stainless Steel or Aluminised Sheet
Insulation Material:  Max.1200 °C Steatit
Resistance Winding Wire:  80/20 NiCr 1200°C
Energy Connection :  Ni GLS Cable Resistant to 400ºC and connection box
