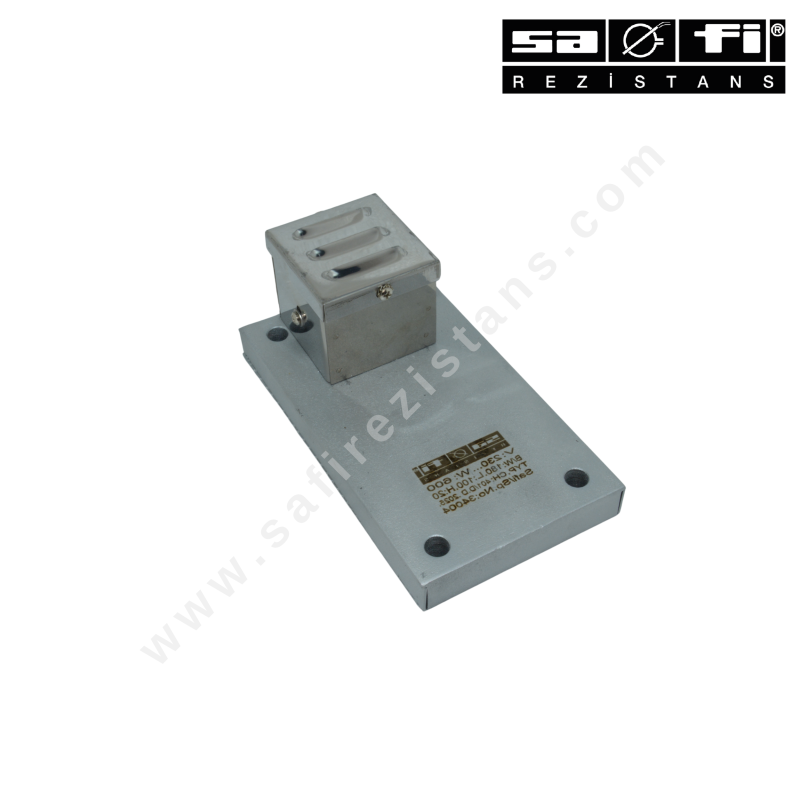

Ceramic Insulated Iron Flat Heater

Plate heater is designed to be used in the processing and making of plastic raw materials, in the output molds of extruder machines and in machines in many fields of Industry.

These ceramic insulated heaters can be tested and oparate idle.

Theseheaters are produced by processing iron plate and they are long life plate heaters which increase the efficiency and life of your machine.

It is produced according customer's demand.

Technical Specification
Width :  Min. 40mm - Max 400mm
Length:  Min 50mm- Max 1200mm
Voltage: 230/400 V
Wattage : Max. 6,5 W/cm²
Wall Thickness: 20mm
Working Temperature:  550 °C
Housing Material : Iron
Insulation Material:  Max. 1200°C Steatit
Resistance Winding Wire:  80/20 NiCr 1200°C
Energy Connection :  Ni GLS Cable Resistant to 400ºC or plug sockets
