Elstein SHTS Ceramic Infared Panel Radiators

Elstein SHTS super high temperature radiators were
developed to increase the previous maximum possible
surface rating of ceramic panel radiators from
64 kW/m² to 77 kW/m².
The SHTS radiators, produced using the hollow casting
ceramic process, are filled with thermal insulation
material and have a special black glaze and a goldplated
back. At an operating temperature of 900 °C,
over 75 % of the electrical energy supplied is transferred
to the material to be heated as medium to longwave
IR radiation.
SHTS series radiators are therefore particularly suitable
for use in plant construction, in which special solutions
have to be drawn up for the customer‘s specific
needs and for applications requiring high outputs.

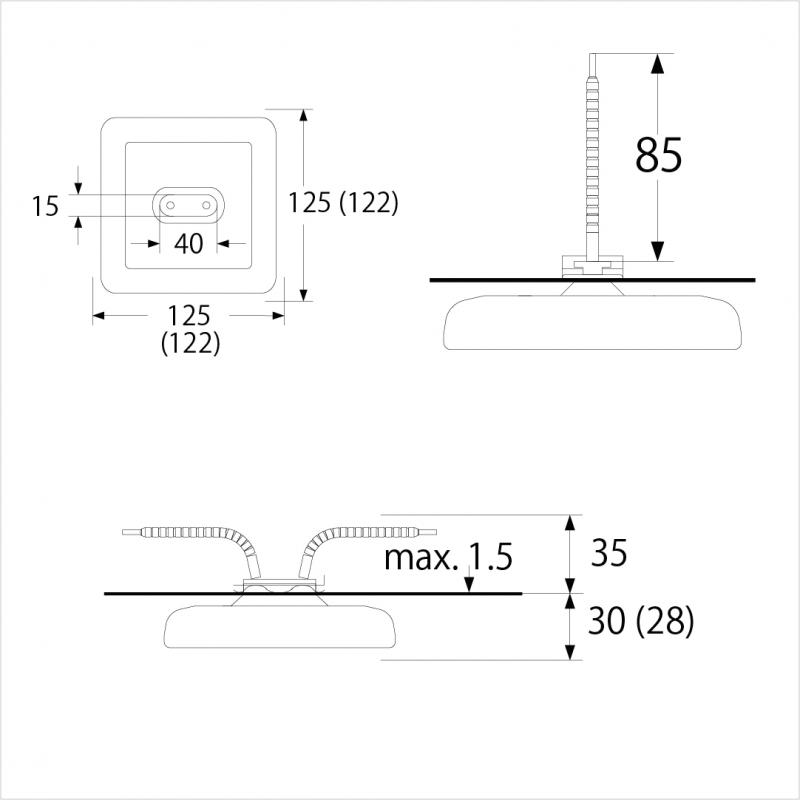

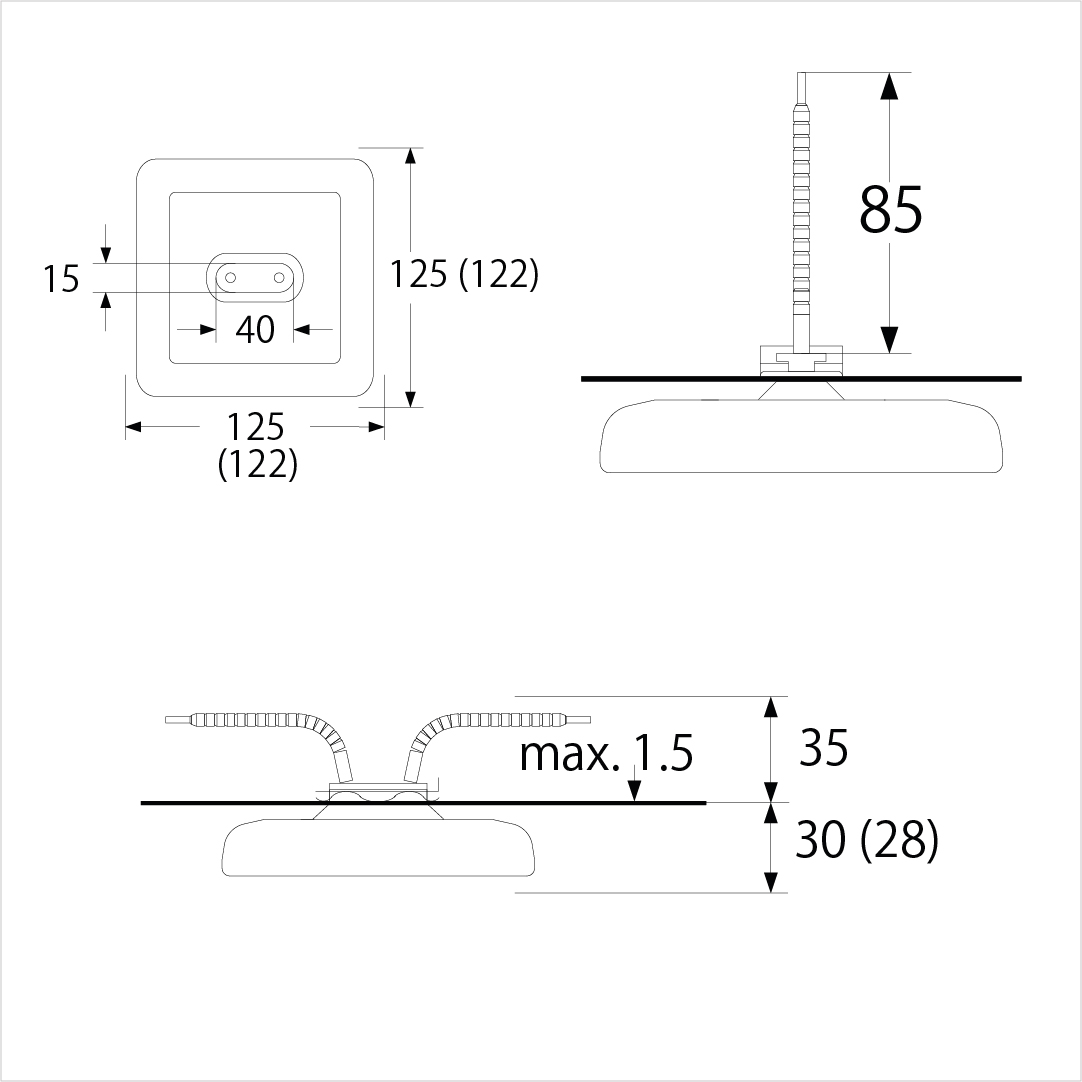

The four designs cover the power range from 300 W
to 1200 W and have customary market dimensions.
Existing IR equipments can therefore be retrofitted
with Elstein SHTS series radiators.
